2450FB15K0005
Model：2450FB15K0005
Package：0805
FILTER BANDPASS 2.45GHZ
| Datasheets | 2450FB15K0005 |
|---|---|

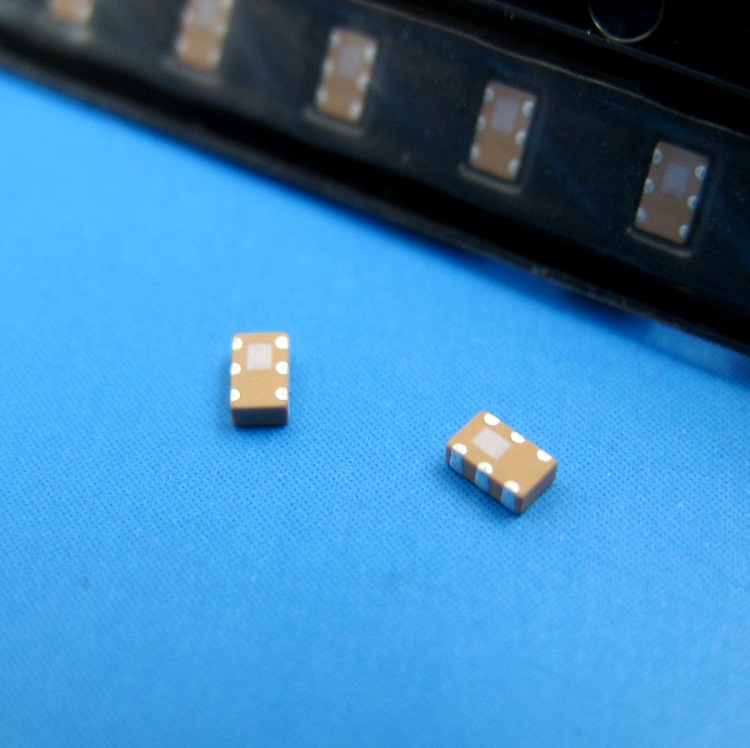

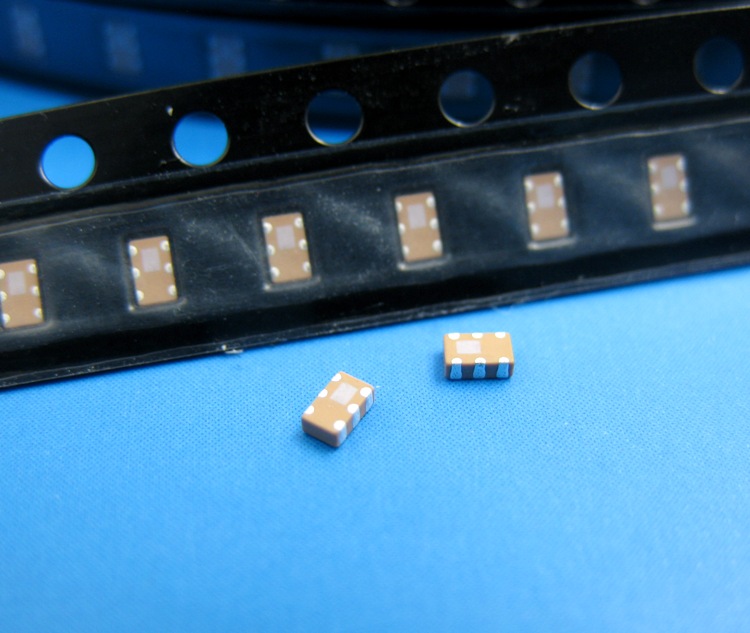

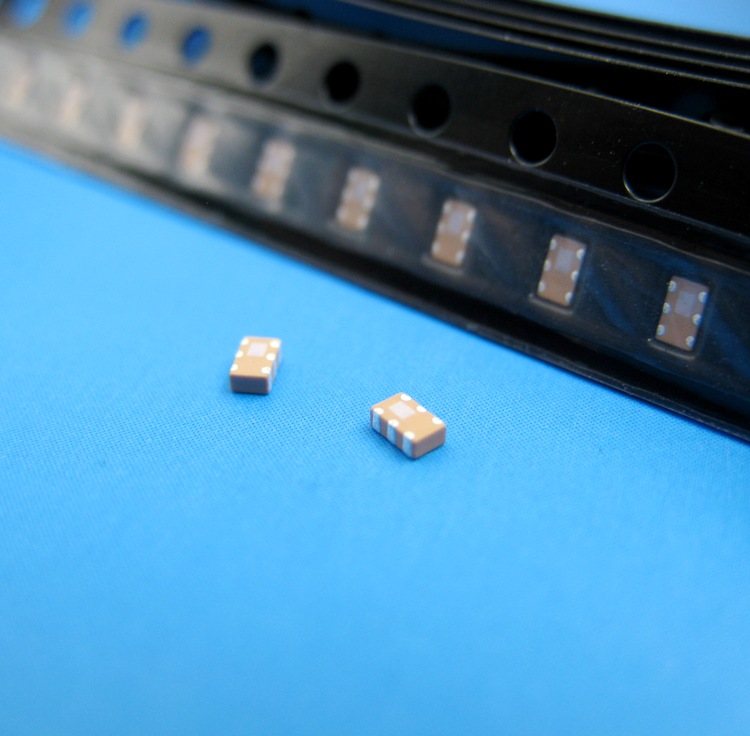

| Product Photos | 4.0GHz Filter8 |
| Product Training Modules | Benefits of using Integrated Passive Components over a Discrete Solution |
Standard Package  |
4,000 |
| Category |
Filters |
| Family |
RF Filters |
| Series | - |
| Packaging |
Tape & Reel (TR) |
| Frequency | 2.45GHz Center |
| Bandwidth | 100MHz |
| Filter Type | Band Pass |
| Ripple | 1.5dB |
| Insertion Loss | 3.5dB |
| Package / Case | 0805 (2012 Metric), 8 PC Pad |
| Mounting Type | Surface Mount |
| Height (Max) | 0.031" (0.80mm) |
| Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) |
| Other Names | 712-1539-2 |
FOR CSR BC03/04/05
